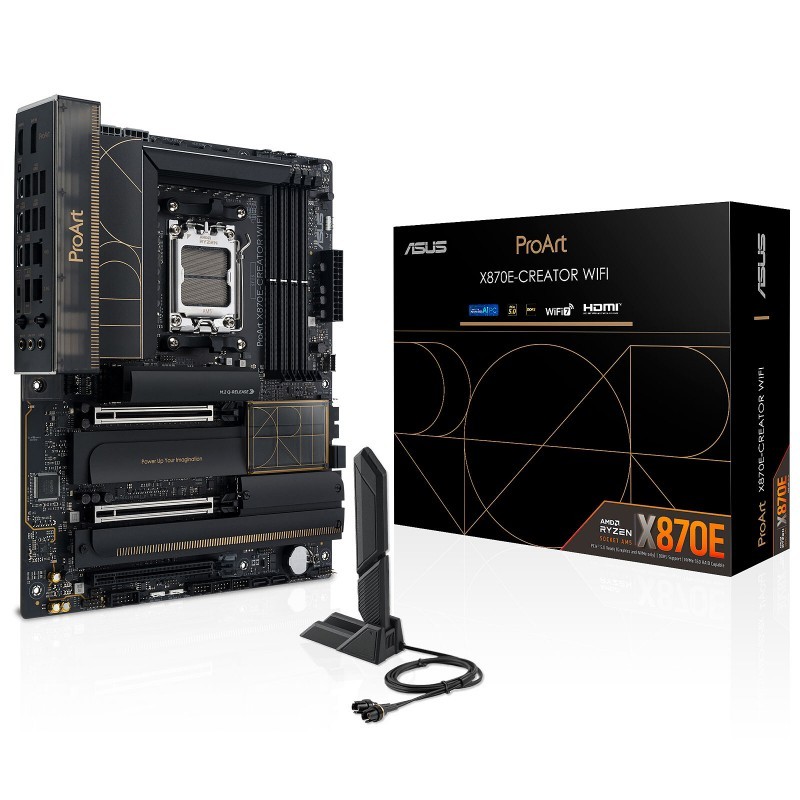

Carte Mère - ASUS ProArt X870E-CREATOR WIFI

Model ProArt X870E-CREATOR WIFI

CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset AMD X870E

Mémoire 4 x DIMM slots, max. 192GB, DDR5

Support up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors,

8000+MT/s(OC) with Ryzen™ 8000 Series Processors,

8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

configuration, for more information refer to www.asus.com for memory support list.

*** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Carte graphique 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

Slots d'expansion

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)

AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*

1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)

AMD Ryzen™ 8500 & 8300 Series Desktop Processors*

1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4,  PCIEX16(G5)_2 will be disabled)

AMD X870E Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.

*** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.

- To ensure compatibility of the device installed, please refer to

https://www.asus.com/support/ for the list of supported peripherals.

Stockage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot is not supported

AMD X870E Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* PCIEX16(G5)_2 slot shares bandwidth with M.2_2.

AMD RAIDXpert2 Technology

Ryzen™ 7000 series processors: PCIe RAID 0/1/10

Ryzen™ 8000 series processors: PCIe RAID 0/1

Ryzen™ 9000 series processors: PCIe RAID 0/1/5/10

X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10

Ethernet

1 x Marvell® AQtion 10Gb Ethernet

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 11 ports)

2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)

1 x USB 20Gbps port(s) (1 x USB Type-C®)

7 x USB 10Gbps port(s) (7 x Type-A)

1 x USB 2.0 port (1 x Type-A)

Front USB (Total 9 ports)

1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**

1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

"* USB Type-C® power delivery output: max. 5V/3.0A"

** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ports E/S du panneau arrière

2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)

1 x USB 20Gbps port (1 x USB Type-C®)

7 x USB 10Gbps ports (7 x Type-A)

1 x USB 2.0 port (1 x Type-A)

1 x DisplayPort (Input only)

1 x HDMITM port

1 x Wi-Fi Module

1 x Marvell® AQtion 10Gb Ethernet

1 x Intel® 2.5Gb Ethernet

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Connecteurs internes I/O

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)

1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Chassis Intrusion header

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Fonctionnalités spéciales

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- Safeslot

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- PCIe Slot Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsinks

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- Addressable Gen 2 headers

Bespoke Motherboard Design & Business Focused Features

- 24/7 Reliability

- Overcurrent Protection

Front Panel USB 20Gbps with Quick Charge 4+ Support

- Support: up to 30W fast charging and USB Wattage Watcher

- Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A

- Compatible with PD3.0

Fonctionnalités logicielles

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4 with AI Cooling II

- Power Saving

ASUS DriverHub

ASUS GlideX

USB Wattage Watcher

TurboV Core

ASUS CPU-Z

ProArt Creator Hub

CreationFirst

Adobe Creative Cloud (Free Trial)

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

Remote Management Features

IT Management software supported

- ASUS Control Center Express(ACCE)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Gestion

WOL by PME, PXE

Accessoires

Cables

1 x DisplayPort cable

4 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2 22110

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Q-connector

1 x M.2 Q-Latch package

1 x M.2 Q-Latch Q-Slide package for M.2 backplate

2 x Rubber Packages for M.2

1 x ProArt ruler

Documentation

1 x Quick start guide

1 x ACC Express Activation Key Card

OS

Windows® 11

Format

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
